Part III

WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Part I. Refer to Part I .

Part II. Refer to Part II .

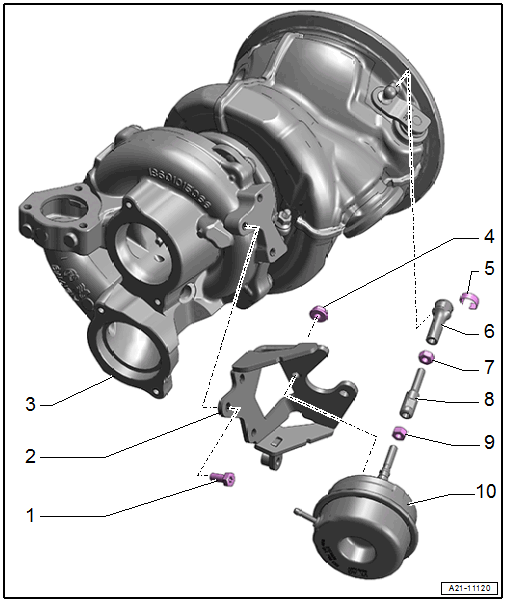

Fig 1: Exploded View Of Turbocharger, 3.0L Engine

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 9 Nm
Bracket
- For the vacuum diaphragm
Turbocharger
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING, 3.0L ENGINE .
Nut
- 9 Nm
Locking Spring
- Replace after removing.
Ball Socket
Nut
- 8 Nm
Threaded Piece
Nut
- 8 Nm
Vacuum Diaphragm
- For the turbocharger
- Repair set. Refer to the Parts Information
- Removing and Installing. Refer to TURBOCHARGER VACUUM DIAPHRAGM, REPLACING .

Engine Cover Temperature SensorG765 - Tightening Specification

Fig 2: Engine Cover Temperature Sensor -G765-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -1- to 9 Nm.
