Part II
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Part I. Refer to Part I .

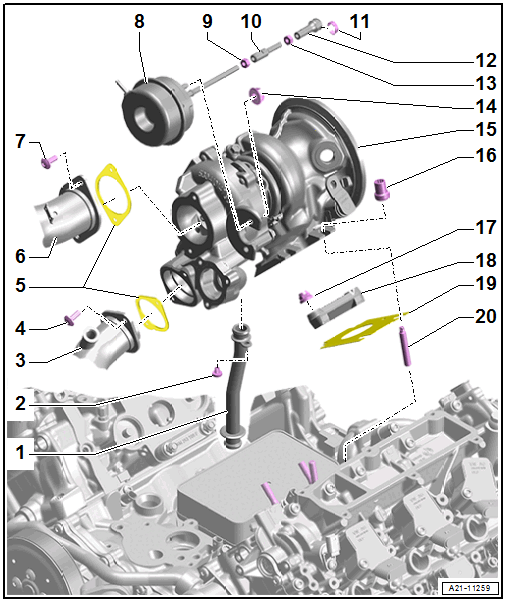

- Oil Return Line
- Replace after removing.
- Clip
- Lower Air Duct Pipe
- Overview. Refer to OVERVIEW - CHARGE AIR SYSTEM, 2.9L ENGINE-SIDE .
- Bolt
- Tightening specification -item- 31
- Seals
- Replace after removing.
- Air Duct Pipe
- Bolt
- 9 Nm
- Vacuum Diaphragm
- For the turbocharger
- There are different versions. Repair set. Refer to the Parts Information
- Removing and Installing. Refer to TURBOCHARGER VACUUM DIAPHRAGM, REPLACING .
- Nut
- 8 Nm
- Threaded Piece
- Locking Spring
- Replace after removing.
- Ball Socket
- Nut
- 8 Nm
- Nut
- 9 Nm
- Turbocharger
- Shown for cylinder bank 2 (left)
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
- Nut
- Step 1: 15 Nm
- Step 2: 30 Nm
- Step 3: After finishing the procedures, tighten the nuts to 30 Nm
- Replace after removing.
- Nut
- 30 Nm
- Tensioning Bracket
- Seal
- Replace after removing.
- Stud Bolt
- 15 Nm
- Always replace
