Overview - Charge Air Hose Connections
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- The hose connections as well as air duct pipes and hoses must be free of oil and grease before installing.
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
- In order to be able to securely mount the air duct hoses on their connections, spray the bolts on the previously used screw-type clamps with rust remover before installing.
Hose clamps on the hooks on the pressure side -arrows-.
- To remove the air duct hose, the screw-type clamp must be loosened enough.
- Loosened screw-type clamps can be reused.
- A screw-type clamp -1- with hooks -arrows- may not be removed from the air duct hose.
- If a screw-type clamp with hooks was removed from the air duct hose, the air duct hose must be replaced.
- A new air duct hose will be delivered with the screw-type clamp installed.
Tightening specifications
- Hose clamp -a- = 12 mm wide: 5 Nm
- Hose clamp -b- = 9 mm wide: 3.4 Nm
Air duct hoses on air duct pipes/charge air cooler - installation position and tightening specification

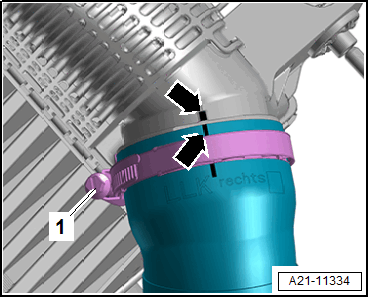

- The markings on the air duct hose must align with the housing edge or the notch on the air duct pipe/charge air cooler -arrows-.
-- Tighten the hose clamps to 5 Nm.
