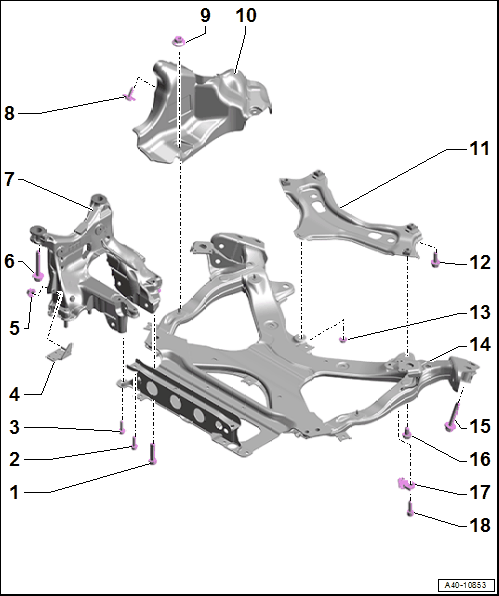

Subframe
CAUTION:
There is a risk of damaging the threads on the subframe/crossbrace threaded connection to the body.
- The subframe/crossbrace bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.
There is a risk of damaging the suspension components.
- If the subframe mount, steering gear or subframe crossbrace are not installed correctly, do not rest the vehicle on its wheels.
- Supporting the vehicle at the subframe or the subframe crossbrace (for example, using a floor jack or similar device) is not permitted.
- Bolt
- 90 Nm + 90°
- Replace after removing.
- Tightening sequence. Refer to Fig 2.
- Bolt
- 20 Nm + 90°
- Replace after removing.
- Tightening sequence. Refer to Fig 2.
- Bolt
- 20 Nm + 90°
- Replace after removing.
- Tightening sequence. Refer to Fig 2.
- Bracket
- For wires
- Nut
- 20 Nm
- Bolt
- 115 Nm + 180°
- Replace after removing.
- Tightening sequence. Refer to Fig 3.
- Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and installing. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Nut
- 9 Nm
- Shield
- Removing and Installing. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
- End Panel
- Installed, depending on the version
- Bolt
- 50 Nm + 90°
- Replace after removing.
- Nut
- 30 Nm
- Subframe Crossbrace
- Removing and Installing. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
- Bolt
- 115 Nm + 180°
- Replace after removing.
- Tightening sequence. Refer to Fig 3.
- Bolt
- 70 Nm +90°
- Replace after removing.
- Clip
- Installed, depending on the version
- Allocation. Refer to the Vehicle Diagnostic Tester.
- A longer bolt -item- 18 must be installed together with the clip
- Bolt
Subframe Crossbrace - Tightening Sequence
-- Tighten the bolts in steps:
| Step | Bolts | Tightening Sequences |
|---|---|---|
| 1. | -arrows- | Install by hand all the way |
| 2. | -arrows- | Tighten diagonally in stages |
Subframe with Crossbrace - Tightening Sequence
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Sequences |
|---|---|---|
| 1. | -1 through 10- | Install by hand all the way |
| 2. | -1 through 10- | Tighten |
Stabilizer Bar
- Nut
- 30 Nm
- Replace after removing.
- Remove and tighten evenly alternating from side to side.
- Clamp
- Stabilizer Bar
- With rubber bushing
- The rubber bushing cannot be replaced separately
- Removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING .
- Nut
- 40 Nm + 90°
- Replace after removing.
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Subframe
- Bolt
- Replace after removing.
- Coupling Rod
- Removing and installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
- Shock Absorber Fork
- Removing and installing. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
- Nut
- 40 Nm + 90°
- Replace after removing.
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Bolt
- Replace after removing.
