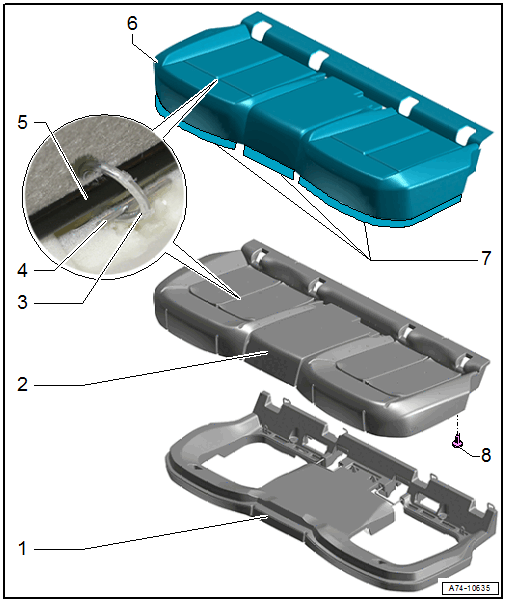

Overview - Bench Seat Cover And Cushion
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Molded Part
- Cushion
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Upholstery Clip
- For securing the cover to the cushion
- Replace
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
- Contour Wire
- Sewn into cover
- For securing the cover to the cushion
- Cover
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Check that there are no folds after installing
- Clamping Strip
- Sewn into cover
- For attaching the cover to the seat frame
- Flip over 180° and engage in the groove on the molded piece. Refer to Installing .
- Clip
