Cover And Cushion, Removing And Installing, Bench Seat: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pry Lever:80-200

Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

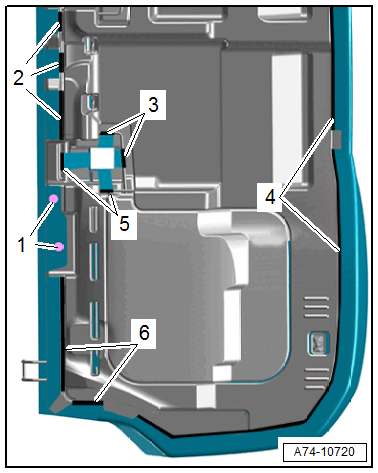

-- Remove the clips -1- using the :80-200 .

-- Pry the cover clamping strip -2 to 6- out from the molded part using a screwdriver along the seat frame.

-- Remove the cover and cushion from the seat frame.
