Center Cushion, Removing And Installing, Backrest With Pass-Through: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats all the way forward.
-- Remove the left seat cushion. Refer to SEAT CUSHION, REMOVING AND INSTALLING, SINGLE SEATS .
-- Move the rear seat all the way forward.
-- Fold the rear seat backrests forward.

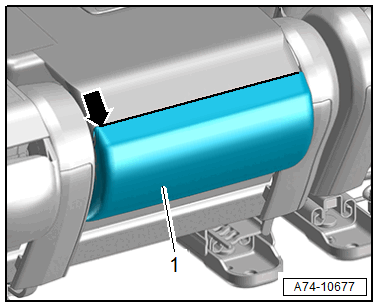

-- Pry out and remove the cover -1- clamping strip -arrow- for the center cushion from the backrest frame using a screwdriver.
-- Fold the rear seat backrests toward the rear.

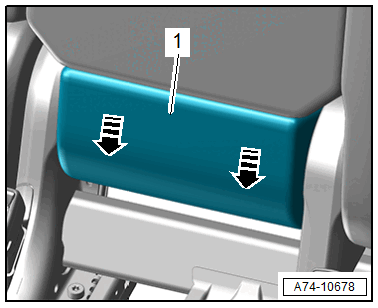

-- Push the center cushion -1- downward in direction of -arrows-, disengage and remove at the center folding backrest.
