Seat Pan Cover And Cushion, Separating: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover and cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

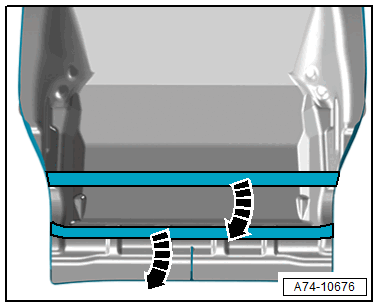

-- Remove the cover rubber straps toward the rear from the cushion -arrows-.

-- Remove the cover -2- from the cushion -1- and cut upholstery clips -arrows- using pliers.

Courtesy of AUDI OF AMERICA, LLC

Equipment Versions with Seat Depth Adjuster:

Fig 1: Identifying Cover -1-, Channels -2-, Seat Depth Adjuster Cushion -3-, Tabs -4- & Catches -5-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining channel -2- from the retainers -5-.

-- Disengage the cover from the retainers -4- on both sides.

-- Remove the seat depth adjuster seat cushion -3- from the cover -1-.
