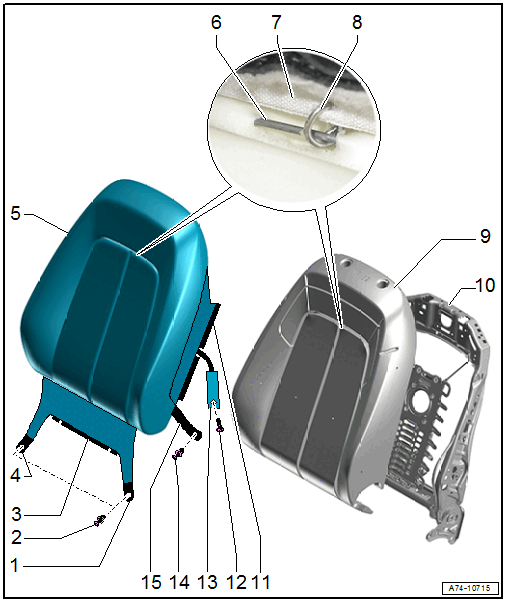

Overview - Backrest Cover And Cushion, Standard Seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Tab
- Sewn into cover
- For attaching the cover to the backrest frame
- Clip
- Replace after removing.
- Quantity: 2
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Tab
- Sewn into cover
- For attaching the cover to the backrest frame
- Cover
- Covers and Cushions, Removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
- Contour Wire
- Pushed into the cover mounting pocket
- For securing the cover to the cushion
- Upholstery Clip
- Replace after removing.
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
- Cushion
- Covers and Cushions, Removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
- Backrest Frame
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Clip
- Replace after removing.
- Quantity: 2
- Tab
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
- Clip
- Replace after removing.
- Quantity: 2
- Tab
- Sewn into cover
- For attaching the cover to the backrest frame
