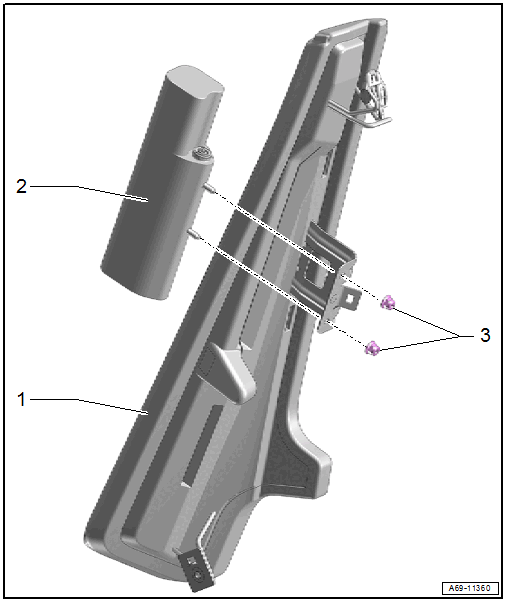

Overview - Rear Thorax Airbag
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Side Cushion
- Removing and installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Rear Thorax Airbag
- With
- Driver Side Rear Thorax Airbag Igniter -N201-
- Passenger Side Rear Thorax Airbag Igniter -N202-
WARNING:Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- With
- Nuts
- 6 Nm
- Replace after removing.
- Install with locking compound. Refer to the Parts Information for the locking compound.
