Overview - Front Thorax Airbag

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

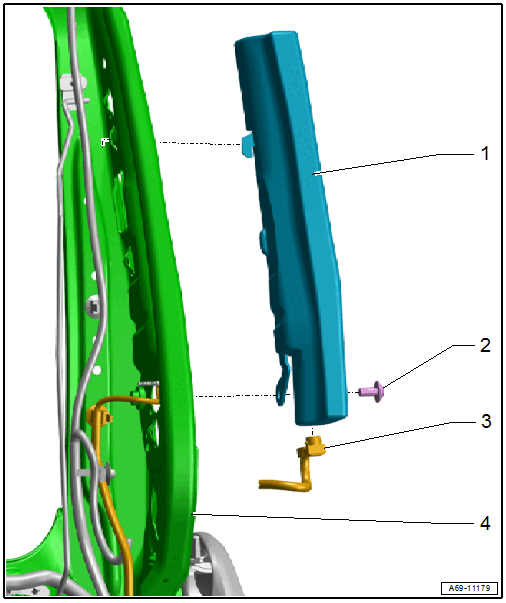

Fig 1: Exploded View Of Front Thorax Airbag

Courtesy of AUDI OF AMERICA, LLC

Front Thorax Airbag
- With
  - Driver Thorax Airbag Igniter -N199-
  - Front Passenger Thorax Airbag Igniter -N200-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
- Replace after removing.
- Clean the threaded hole for the bolt with a thread tap, for example
- Install with locking compound. Refer to the Parts Information for the locking compound.
Wire
- From Driver Thorax Airbag Igniter -N199- /Front Passenger Thorax Airbag Igniter -N200- directly to the connector station
- Removing and installing. Refer to THORAX AIRBAG WIRE, REMOVING AND INSTALLING .
Backrest Frame
