Seat Belt Guide In Rear Seat Backrest, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear belt end fitting in the center. Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
-- Release the catches -1- by inserting a screwdriver from above through the hole in the belt guide.
-- At the same time, unclip the seat belt guide -2- using the :3409 -arrow-.
-- Thread the belt end fitting out and remove the seat belt guide.
Single Seats:

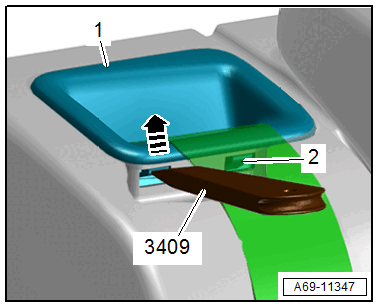

-- Push the cover and backrest cushion to the side and release both the seat belt guide tabs -2- consecutively using the :3409 .
-- At the same time, unclip the belt guide -1- upward -arrow-.
-- Thread the belt end fitting out and remove the seat belt guide.
