Outer Rear Seat Belt Guide, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Remove the side cover. Refer to SIDE COVER, REMOVING AND INSTALLING .

-- Remove the seat belt webbing from the seat belt guide and move to the side.

Courtesy of AUDI OF AMERICA, LLC

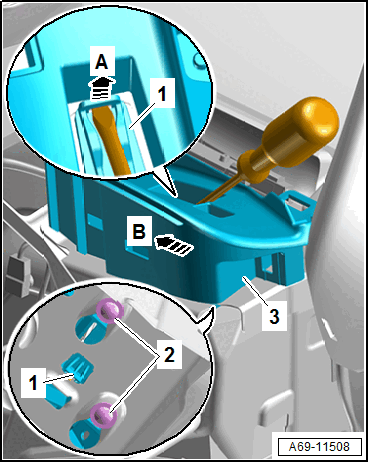

-- Use a screwdriver to push the seat belt guide hook -1- upward -arrow A- and hold it in this position.

CAUTION:

There is a risk of malfunction.

Do not, under any circumstances, turn the bolts -2- when removing and installing the seat belt guide -3-. They are set by the manufacturer.
Replace the entire seat belt guide if damaged.

-- Slide the seat belt guide -3- toward the rear -arrow B- until the bolt heads -2- can be disengaged from the bracket on the body.

-- Disengage the seat belt guide from the bracket and remove toward the front.

-- Equipped on some models on the right side of the vehicle: disconnect the connector for the parking aid warning buzzer.
