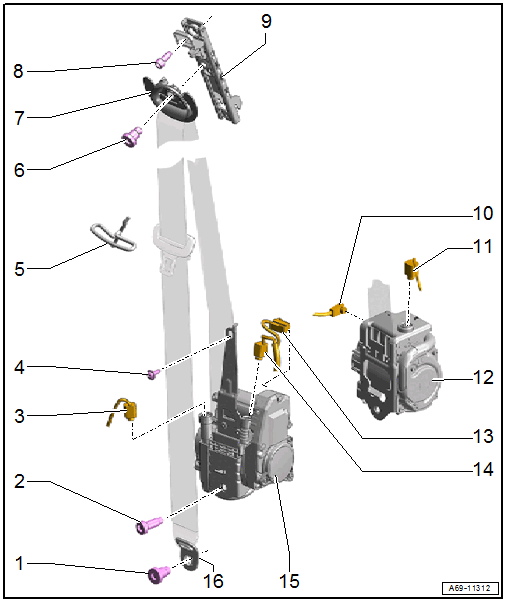

Overview - Front Three-Point Seat Belt, Market-Specific Rest Of World
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Screw
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Screw
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Connector
- For the seat belt tensioner igniter 1
- Screw
- 4 Nm
- Front Seat Belt Guide
- Place seat belt webbing in the front seat belt guide
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Screw
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Seat Belt Guide
- Screw
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 27 Nm
- Seat Belt Height Adjuster
- Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Connector
- For the seat belt tensioner igniter 1
- Connector
- For the seat belt force limiter
- Automatic Belt Retractor without Electric Seat Belt Tensioner
- Equipped on some models
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Connector
- For the front seat belt tensioner control module
- Connector
- For the seat belt force limiter
- Automatic Belt Retractor with Electric Seat Belt Tensioner
- Equipped on some models
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- The Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- must be adapted after replacing the automatic belt retractors using the Vehicle Diagnostic Tester.
- Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
