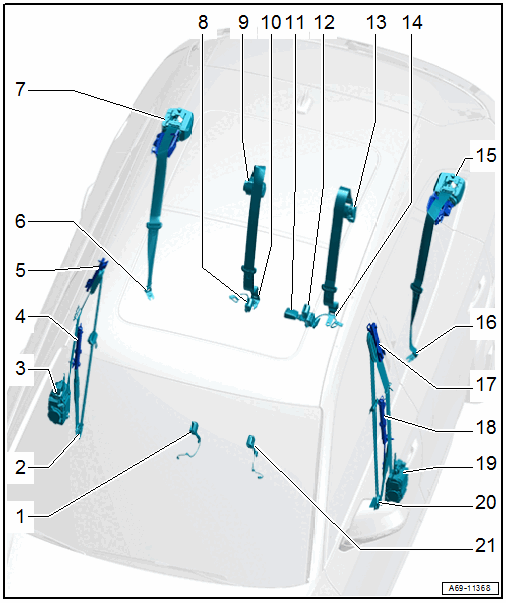

Component Location Overview - Seat Belts And Mounting Points
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Front Seat Belt Latch
- With Front Passenger Seat Belt Switch -E25-
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
- Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the front three-point seat belt
- With:
- Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Front Passenger Belt Force Limiter -G552-
- Equipment versions with electric seat belt tensioner: Right Front Seat Belt Tensioner Control Module -J855-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Front Passenger Seat Belt Tensioner Igniter 2 -N298-
- Only USA and Canada market
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Belt Height Adjuster/Front Seat Belt Guide
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Outer Rear Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For outer rear three-point seat belt
- With Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Right Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
- Automatic Belt Retractor
- For the rear three-point seat belt in the center
- Equipped on some models: Low rear seat
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Center Rear Belt End Fitting
- Equipped on some models: Low rear seat
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Rear center belt latch
- With Center Rear Seat Belt Switch -E609-
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
- Left Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH .
- Automatic Belt Retractor
- For the rear three-point seat belt in the center
- Equipped on some models: single seats
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Center Rear Belt End Fitting
- Equipped on some models: single seats
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For outer rear three-point seat belt
- With Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Outer Rear Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Belt Height Adjuster/Front Seat Belt Guide
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Driver Seat Belt Tensioner Igniter 2 -N297-
- Only USA and Canada market
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the front three-point seat belt
- With:
- Driver Seat Belt Tensioner Igniter 1 -N153-
- Driver Belt Force Limiter -G551-
- Equipment version with electric seat belt tensioner: Left Front Seat Belt Tensioner Control Module -J854-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Front Seat Belt Latch
- With Driver Seat Belt Switch -E24-
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
