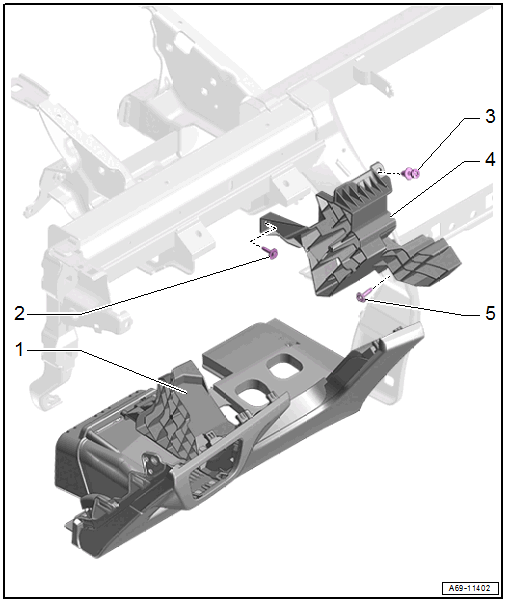

Overview - Knee Bar, Driver Side
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Outer Knee Bar
- Only available together with the instrument panel cover
- Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Expanding Clip
- Inner Knee Bar
- Removing and Installing. Refer to INNER KNEE BAR, REMOVING AND INSTALLING, DRIVER SIDE .
- Bolt
- 3 Nm
