Overview - Rear Child Seat Anchors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

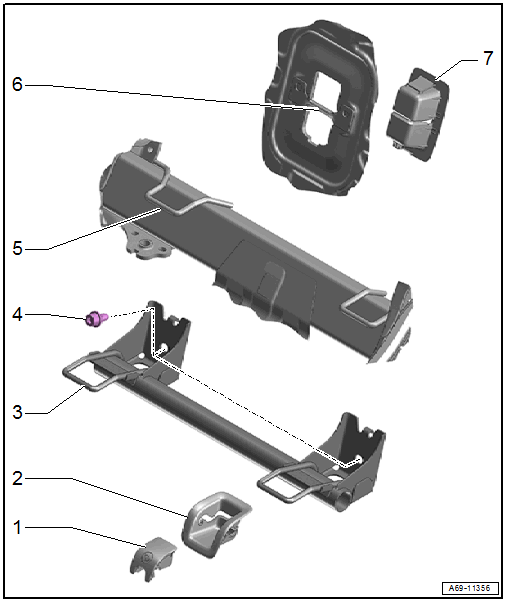

- Child Seat Anchor Cover
- Quantity: 4
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Must be secure on the anchor
- Child Seat Anchor Guide
- Quantity: 4
- Secured to the seat cushion with a strap
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Must be secure on the anchor
- Child Seat Anchor
- Quantity: 2
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Screw
- 20 Nm
- Quantity: 4
- Child Seat Anchor, Single Seats
- Welded to the seat frame
- Upper Child Seat Anchor
- Quantity: 3
- Welded to the backrest frame
- Child Seat Anchor Cover
- Quantity: 3
- Removing and Installing. Refer to UPPER CHILD SEAT ANCHOR COVER ON REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Engage in the anchor and press on it until it engages audibly
- Can only be pushed onto the rear seat backrest in one position
