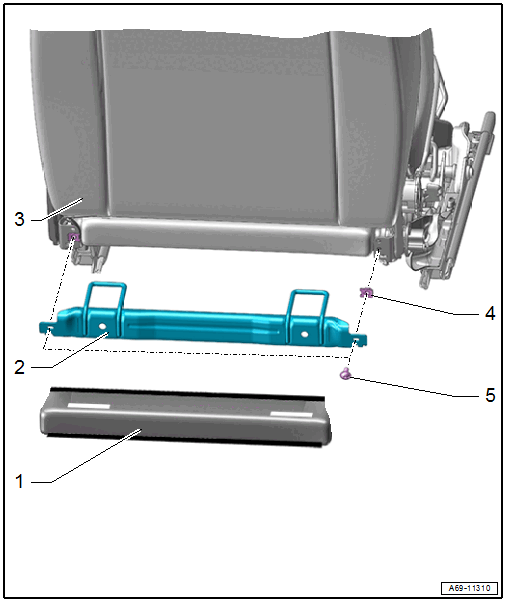

Overview - Front Child Seat Anchors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Child Seat Anchor Cover
- Child Seat Anchor
- Replace damaged or deformed child seat anchor
- Front passenger seat only
- Bolted to the seat pan
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Front Passenger Seat
- Spring Nut
- Replace any damaged or deformed spring nuts
- Attached in the seat pan
- Quantity: 2
- Bolt
- 7.5 Nm
- Replace after removing.
- Quantity: 2
