Front Child Seat Anchor, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the tunnel-side seat side trim. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
-- Sport seat: disengage the straps for the backrest cover.

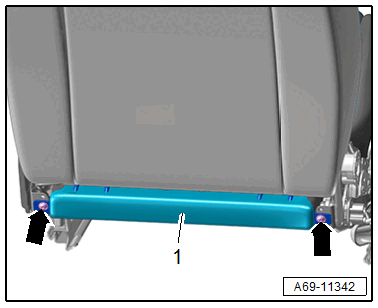

-- Remove the bolts -arrows-.
-- Remove the child seat anchor -1- toward the rear from the front seat.
NOTE:
Remove the casing from the child seat anchor; disengage the molding to do so.
