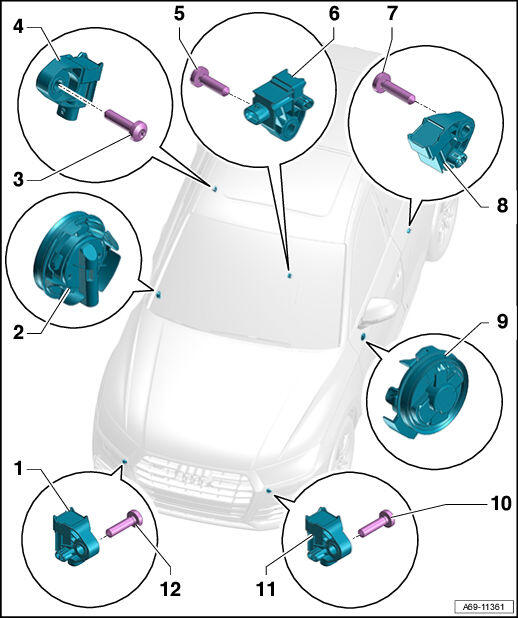

Component Location Overview - Airbag Crash Sensors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: right side of lock carrier
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Bolt
- 9 Nm
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Removing and installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Component location: behind the side cushion
- Bolt
- 9 Nm
- Acceleration Sensor -G165-
- Component location: to the rear of the center tunnel under the center console
- Removing and installing. Refer to Acceleration Sensor -G165-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: behind the side cushion
- Removing and installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location: left side of lock carrier
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
