OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER, Brake System Pressure Reservoir -VX70-, FOR ELECTROMECHANICAL BRAKE BOOSTER
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

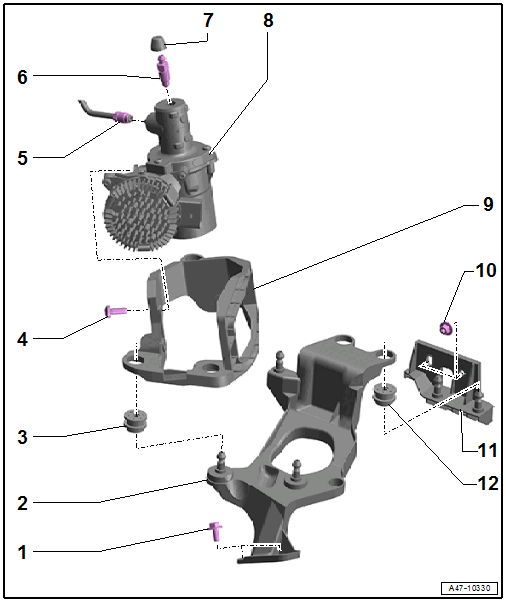

Fig 1: Exploded View Of Brake Booster/Brake Master Cylinder, Brake System Pressure Reservoir -VX70-, For Electromechanical Brake Booster
- Bolt
- 8 Nm
- Bracket
- Rubber Bushing
- Bolt
- 8 Nm
- Brake Line
- 14 Nm
- Bleed Screw
- 10 Nm
- Before installing, thinly coat with Assembly Paste: G 052 150 A2 .
- Protective Cap
- Brake System Pressure Reservoir -VX70-
- Frame
- Nut
- 8 Nm
- Bracket
- Rubber Bushing
