Note For Locking Pin On Brake Fluid Reservoir

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

The brake fluid reservoir is secured with a locking pin -6-

Fig 1: Exploded View Of Brake Booster/Brake Master Cylinder

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The seal -8- in the cap -9- is not available as an individual part.

The securing pin is only inserted and not tightened.

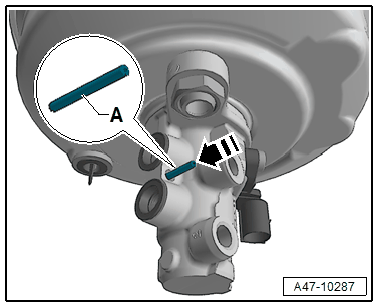

The locking pin is driven out using a suitable tool from the right to the left (direction of travel) out of the brake fluid reservoir and brake master cylinder.

Courtesy of AUDI OF AMERICA, LLC

If necessary completely remove the locking pin using pliers.

After removing the locking pin must be replaced.

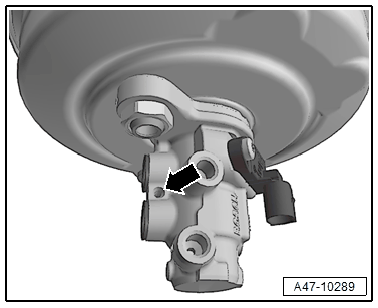

The "new" locking pin must go in the hole -arrow- in the brake master cylinder.

Courtesy of AUDI OF AMERICA, LLC

-- Beforehand push the brake fluid reservoir in the mount on the brake master cylinder.

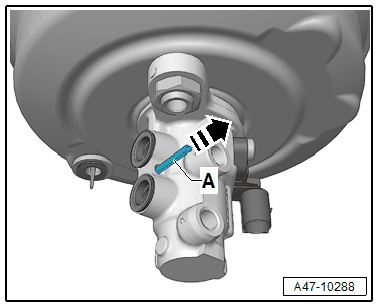

The "new" locking pin -A- is pushed from the left to the right (direction of travel) -arrow- through the tab on the brake fluid reservoir and the brake master cylinder.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The new locking pin -A- must go completely through both tabs on the brake fluid reservoir and the brake master cylinder.

There is a risk that the brake fluid reservoir jumps out of the brake master cylinder.

The vehicle is then without braking.
