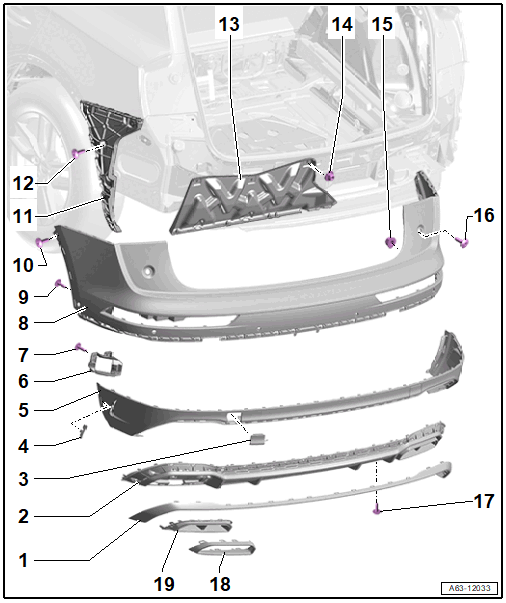

Overview - Bumper Cover, S Line From Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Trim Molding
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S LINE FROM PRODUCT IMPROVEMENT .
- Bumper Cover Lower Section
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Cap
- Left: for the tail lamp bolt
- Right: for the tail lamp bolt and towing eye
- Cover Strip
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Mount
- for lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- Quantity: 3
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 2 Nm
- Bolt
- 2 Nm
- Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 4
- Tightening sequence. Refer to Figure.
- Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nut
- Quantity: 3
- 4 Nm
- Nut
- Quantity: 4
- 4 Nm
- Bolt
- Quantity: 2
- 1.5 Nm
- Bolt
- Quantity: 4
- 2 Nm
- Trim Molding
- For exhaust system trim
- Removing and Installing. Refer to TRIM MOLDING FOR EXHAUST SYSTEM TRIM, REMOVING AND INSTALLING, S LINE FROM PRODUCT IMPROVEMENT .
- Exhaust System Trim
- Removing and Installing. Refer to EXHAUST SYSTEM TRIM, REMOVING AND INSTALLING, S LINE FROM PRODUCT IMPROVEMENT .
