Side Air Intake Grille Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side air intake grille. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, S LINE BEFORE PRODUCT IMPROVEMENT, SQ5, Q5 WITH HIGH-VOLTAGE SYSTEM .

Upper trim for side air intake grille:

-- Remove the signature lighting. Refer to Daytime Running Lamps .

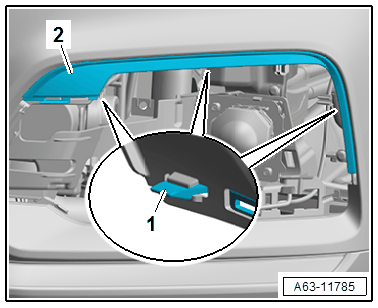

-- Release the retainers -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper trim -2-.

Lower trim for side air intake grille:

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows-.

-- Remove the cover -1-.

-- Release the retainers -1, 2 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower trim -3-.
