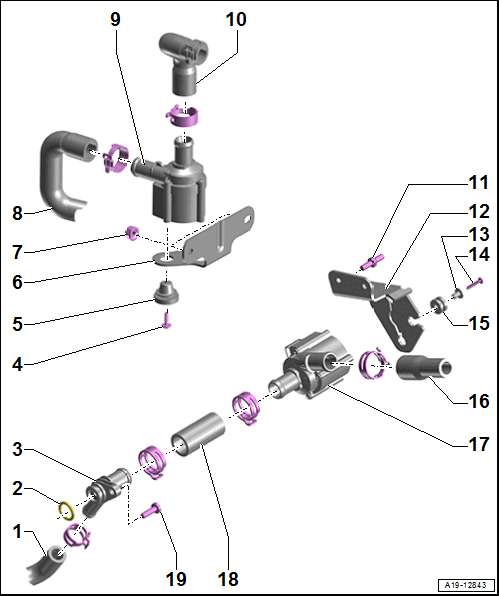

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- O-Ring
- Always replace after removing.
- Connection
- Bolt
- 1.5 Nm
- Rubber Bushing
- Bracket
- For the Coolant Recirculation Pump -V50-
- Nut
- 5 Nm
- Coolant Hose
- Coolant Recirculation Pump -V50-
- Removing and Installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 9 Nm
- Bracket
- For After-Run Coolant Pump -V51-
- Spacer
- Bolt
- 1.5 Nm
- Rubber Bushing
- Coolant Hose
- After-Run Coolant Pump -V51-
- Removing and Installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 9 Nm
