Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

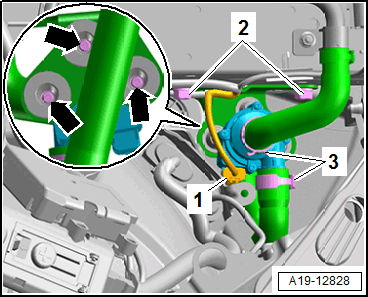

-- Disconnect the connector -1-.
-- Remove the nuts -2-.
-- Loosen the hose clamps -3-, clamp off the coolant hoses with the :3094 and then remove them.
-- Remove the bolts -arrows- and remove the Coolant Recirculation Pump -V50- from the bracket.
