After-Run Coolant Pump -V51-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Install the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

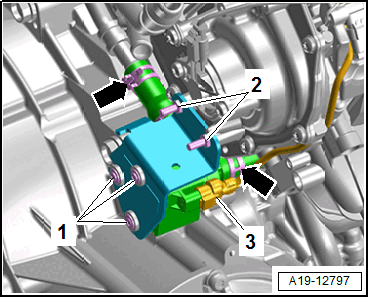

-- Disconnect the connector -3-.
-- Remove the double bolts -2-.
-- Remove the hose clamps -arrows- and remove the After-Run Coolant Pump -V51- with bracket.
-- Remove the bolts -1- and remove the pump from the bracket.
