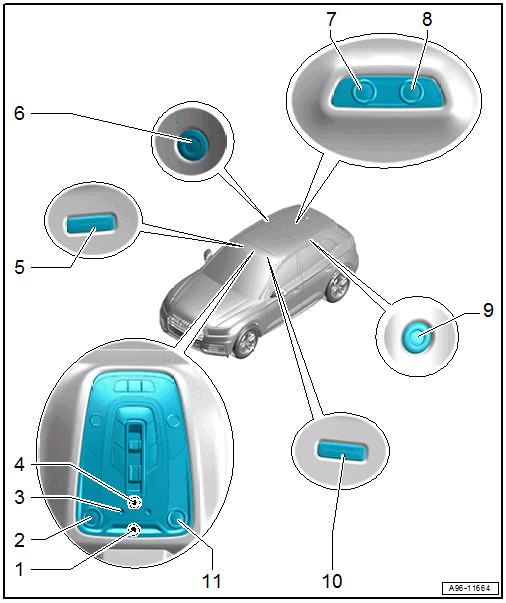

Overview - Roof Trim Panel Lamps
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- The front roof module must be replaced if an indicator lamp is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Driver Reading Lamp -W19-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Ambient Lighting
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Interior Lamp -W1-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp -W14-
- Removing and Installing. Refer to DRIVER/PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Right Rear Reading Lamp -W12-
- For versions with panorama sliding sunroof
- The rear interior lamp must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, WITH PANORAMIC SLIDING SUNROOF .
- Right Rear Interior Lamp -W48-
- For versions without panorama sliding sunroof
- The rear interior lamp must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, WITHOUT PANORAMIC SLIDING SUNROOF .
- Left Rear Interior Lamp -W47-
- For versions without panorama sliding sunroof
- The rear interior lamp must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, WITHOUT PANORAMIC SLIDING SUNROOF .
- Left Rear Reading Lamp -W11-
- For versions with panorama sliding sunroof
- The rear interior lamp must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, WITH PANORAMIC SLIDING SUNROOF .
- Driver Vanity Mirror Lamp -W20-
- Removing and Installing. Refer to DRIVER/PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Front Passenger Reading Lamp -W13-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
