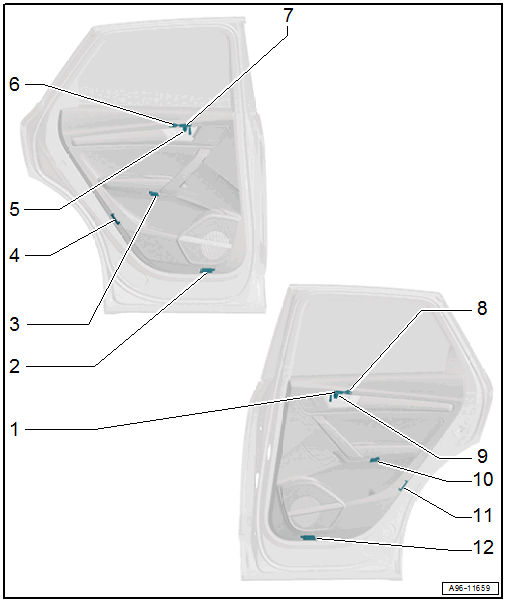

Overview - Rear Door Lamps
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Fiber-Optic Cable
- For interior door handle illumination and exit warning lamp
- Driver Side Rear Entry Lamp -W83-
- Removing and Installing. Refer to REAR ENTRY LAMPS, REMOVING AND INSTALLING .
- Left Rear Door Storage Compartment Illumination Lamp -L257-
- Removing and Installing. Refer to LEFT/RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP -L257- / -L258-, REMOVING AND INSTALLING .
- Driver Side Rear Door Warning Reflector
- Driver Side Rear Interior Door Handle Illumination Bulb -L221-
- Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Driver Side Rear Exit Warning Lamp -W113-
- Removing and Installing. Refer to REAR EXIT WARNING LAMP, REMOVING AND INSTALLING .
- Fiber-Optic Cable
- For interior door handle illumination and exit warning lamp
- Passenger Side Rear Exit Warning Lamp -W114-
- Removing and Installing. Refer to REAR EXIT WARNING LAMP, REMOVING AND INSTALLING .
- Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
- Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Right Rear Door Storage Compartment Illumination Lamp -L258-
- Removing and Installing. Refer to LEFT/RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP -L257- / -L258-, REMOVING AND INSTALLING .
- Front Passenger Side Rear Door Warning Reflector
- Passenger Side Rear Entry Lamp -W84-
- Removing and Installing. Refer to REAR ENTRY LAMPS, REMOVING AND INSTALLING .
