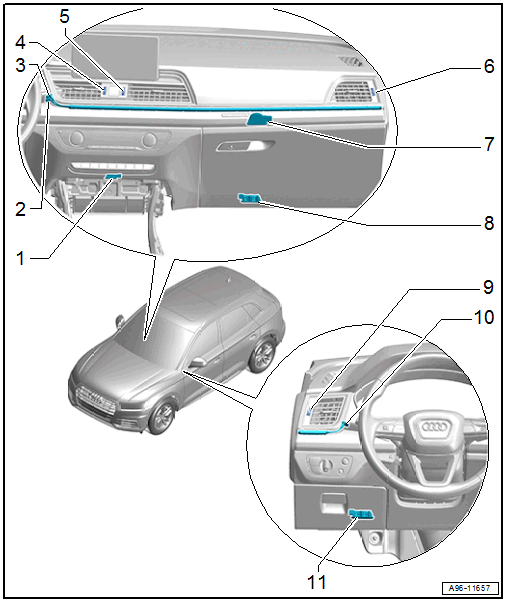

Overview - Instrument Panel Lamps
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Storage Compartment Lamp
- Removing and Installing. Refer to STORAGE COMPARTMENT LAMP, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 3 -L245-
- Cannot be replaced separately if faulty.
- Replacing. Refer to CENTER VENT, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 2 -L244-
- Cannot be replaced separately if faulty.
- Replacing. Refer to CENTER VENT, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68- Left
- Cannot be replaced separately if faulty.
- Replacing. Refer to CENTER VENT, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68- Right
- Cannot be replaced separately if faulty.
- Replacing. Refer to CENTER VENT, REMOVING AND INSTALLING .
- Right Instrument Panel Vent Illumination Bulb -L69-
- Cannot be replaced separately if faulty.
- Replacing. Refer to CENTER VENT, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- 12 V, 5 W
- Removing and Installing. Refer to BULB FOR Glove Compartment Lamp -W6-, REPLACING .
- Right Front Footwell Lamp -K269-
- Removing and Installing. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
- Left Instrument Panel Vent Illumination Bulb -L67-
- Cannot be replaced separately if faulty.
- Replacing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 1 -L243-
- Removing and Installing. Refer to Instrument Panel Contour Illumination Lamp 1 -L243-, REMOVING AND INSTALLING .
- Left Front Footwell Lamp -K268-
- Removing and Installing. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
