Overview - Center Console Lamps
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

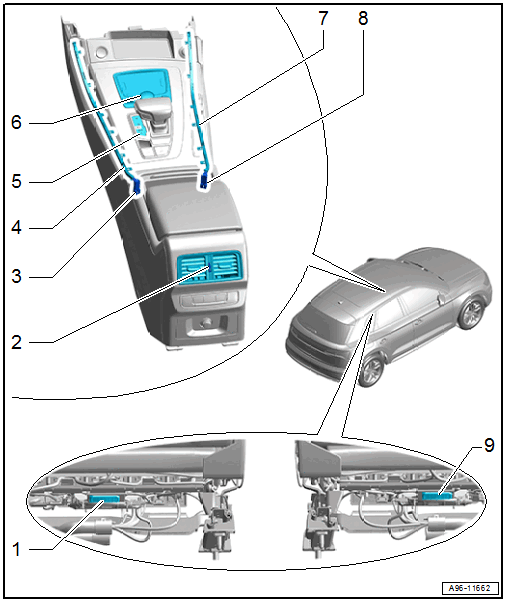

- Left Rear Footwell Lamp -W45-
- Removing and Installing. Refer to LEFT/RIGHT REAR FOOTWELL LAMP -W45- / -W46-, REMOVING AND INSTALLING .
- Rear Vent Illumination Bulb -L216-
- Cannot be replaced separately if faulty.
- Replacing. Refer to OVERVIEW - CENTER CONSOLE .
- Front Center Console Ambient Lighting Bulb 2 -L194-
- Removing and Installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB -L193- / -L194-, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Ambient Lighting Lamp
- Removing and Installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB -L193- / -L194-, REMOVING AND INSTALLING .
- Selector Lever Transmission Range Display -Y5-
- Removing and Installing. Refer to Selector Lever Transmission Range Display -Y5-, REMOVING AND INSTALLING .
- Multimedia System Control Head Contour Illumination Lamp 1 -L233-
- If an LED is faulty, then the multimedia system control head must be replaced
- Fiber-Optic Cable for Ambient Lighting Lamp
- Removing and Installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB -L193- / -L194-, REMOVING AND INSTALLING .
- Front Center Console Ambient Lighting Bulb 1 -L193-
- Removing and Installing. Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB -L193- / -L194-, REMOVING AND INSTALLING .
- Right Rear Footwell Lamp -W46-
- Removing and Installing. Refer to LEFT/RIGHT REAR FOOTWELL LAMP -W45- / -W46-, REMOVING AND INSTALLING .
Tightening Specification Selector Lever Transmission Range Display Y5
-- Tighten the bolts -arrows- to 1.1 Nm.
