Left/Right Luggage Compartment Lamp -W18- / -W35-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

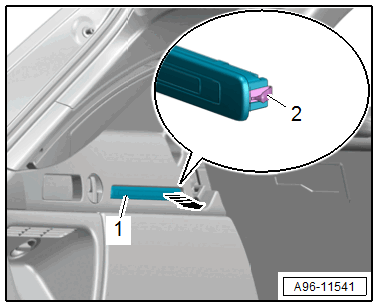

-- Release the retainer -2- with a flat-head screwdriver.

GWWA96-11541Courtesy of AUDI OF AMERICA, LLC

-- Pivot the luggage compartment lamp -1- out of the luggage compartment side trim panel in direction of -arrow-.

-- Disconnect the connector.
