Instrument Panel Contour Illumination Lamp 1 -L243-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

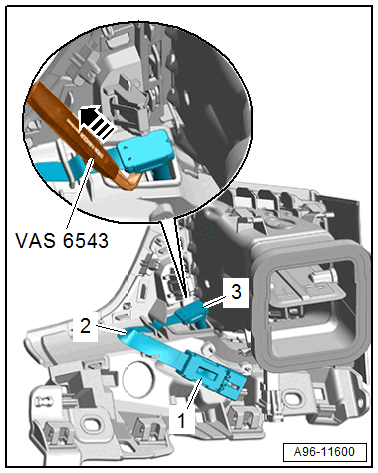

-- Free up the connector -1- by releasing the retainer on the rear side.
-- Free up the conductor strip -2-.
-- Disengage the contour illumination lamp -3- from the fiber-optic cable using the offset screwdriver in direction of -arrow- and remove it.
