Front Center Console Ambient Lighting Bulb -L193- / -L194-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console trim panel. Refer to OVERVIEW - CENTER CONSOLE .

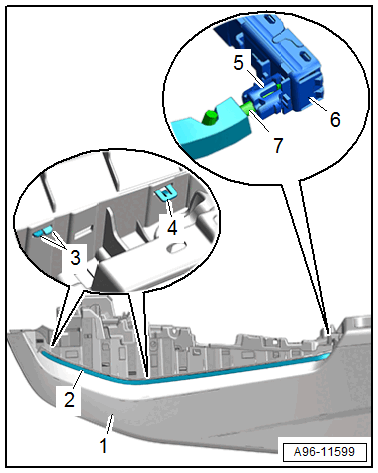

-- Release the retainers -3 and 4-.
-- Remove the mount with the fiber-optic cable -2- from the center console -1-.
-- Release the retainers -5- and remove the fiber-optic cable -7- from the lamp -6-.

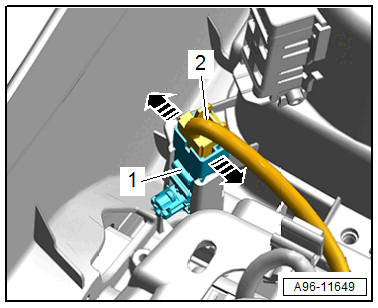

-- Release the retainers in direction of -arrows- and remove the lamp -1- from the mount.
-- Disconnect the connector -2-.
