Cigarette Lighter -U1- /12 V Socket -U5-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 12 V Socket 5 -U26-

Courtesy of AUDI OF AMERICA, LLC

-- The release tabs -2- on the :T40148 must engage in the openings on the cigarette lighter -3- in direction of -arrow-. To do so, the threaded rod -1- must be slid all the way down.

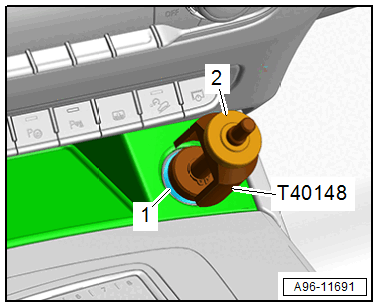

-- Slide the :T40148 all the way into the cigarette lighter -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the thumbwheel -2- at the :T40148 clockwise all the way to the end stop.

The plunger -2- is pulled up and the release tabs -1- are spreading in the :T40148 -arrows-.

Fig 2: Identifying Release Tool T40148 In Use
Courtesy of AUDI OF AMERICA, LLC

-- Remove the cigarette lighter using the :T40148 from the illumination ring with the Cigarette Lighter Illumination Bulb -L28-.

-- Guide the wire out through the mount.

-- Disconnect the connector.
