Overview - Rear Lid Lower Trim Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

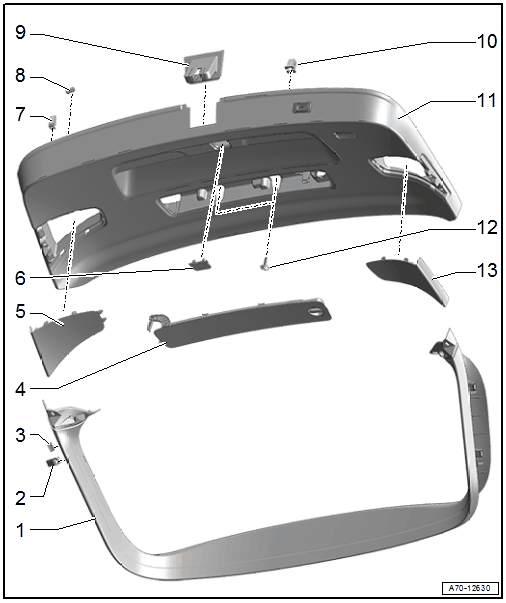

Fig 1: Exploded View Of Rear Lid Lower Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Rear Lid Upper Trim Panel
- Removing and installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining rear lid clips using Omega Clip Tool:T40280 and use them to install the trim.
- Quantity: 8
Rubber Buffer
- Insert in the trim panel
- Quantity: 5
Emergency Triangle Cover
- Engaged in the rear lid trim panel
Cover
- For tail lamps
- Removing and installing. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .
- Clip into the rear lid trim panel
- Press on until it engages audibly
Emergency Release Cover
- Unclip using the Trim Removal Wedge:3409
- Clipped in the rear lid trim panel
- Press on until it engages audibly
Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Quantity: 10
Rubber Buffer
- Quantity: 6
- Insert in the trim panel
Rear Lid Latch Trim Panel
- Removing and installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Expanding Nut
- Clip into rear lid
- Quantity: 2
Rear Lid Lower Trim Panel
- Removing and installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bolt
- 2 Nm
- Quantity: 2
Cover
- For tail lamps
- Removing and installing. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .
- Clip into the rear lid trim panel
- Press on until it engages audibly
