Trim Molding, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
There is a risk of damaging the trim molding.
- Proceed very carefully when removing and installing.

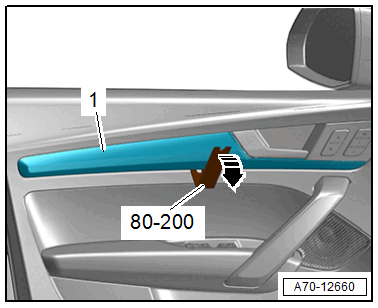

-- Unclip the decorative trim -1- carefully using the :80-200 in direction of -arrow-.

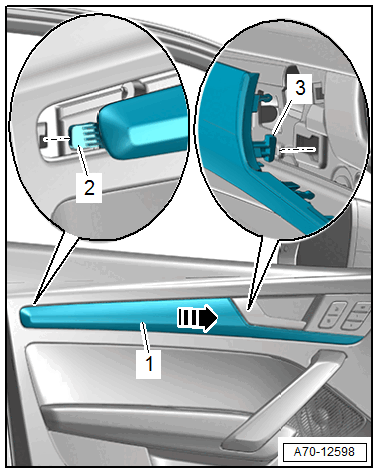

-- Disengage the remaining tabs, remove the decorative trim -1- slightly from the door and slide forward in direction of -arrow- ; this will cause the hook -3- on the door trim panel to disengage.
-- Tilt the decorative trim inward, disengage the hook -2- on the door trim panel and remove.
