Terminal 30 Wire Junction -TV2-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING, 0K0 AND VH0 .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

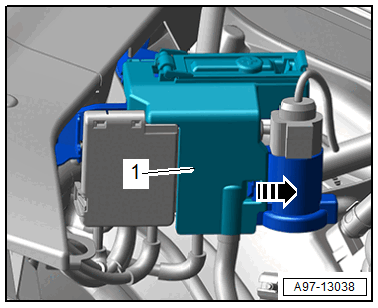

-- Release the retainer in direction of -arrow-.
-- Open the cover -1-.
-- If equipped, remove terminal 30 wire junction 2 and move to the side with the wires still connected. Refer to Terminal 30 Wire Junction 2 -TV22-, REMOVING AND INSTALLING .

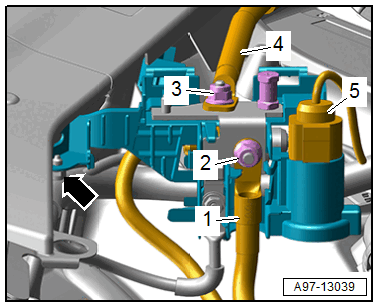

-- Disconnect the connector -5-.
-- Remove the nuts -2 and 3- and free up the wires -1 and 4-.
-- Free up the wiring harness -arrow-.

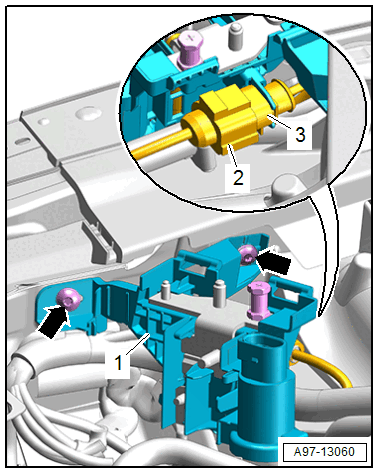

-- Remove the bolts -arrows-.
-- Free up the connector -3- and disconnect the connector -2-.
-- Remove the wire junction -1-.
