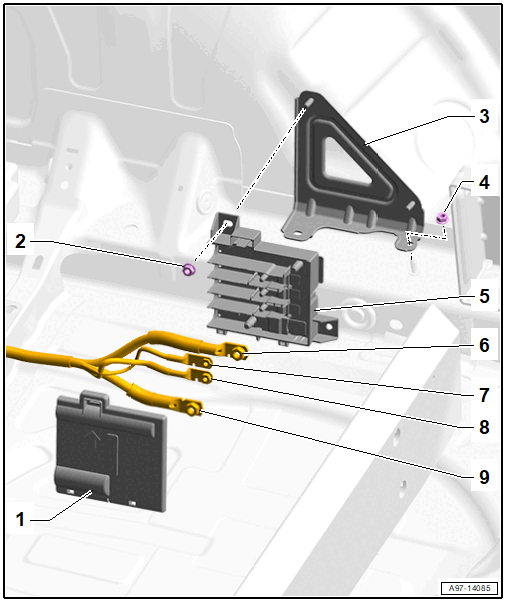

Component Location Overview - Relay Panels, Fuse Panels And E-Boxes, Luggage Compartment, Right 0K3
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Wire
- Tightening specification: 9 Nm
- Allocation. Refer to appropriate service information.
- Nut
- 3.5 Nm
- Quantity: 2
- Bracket
- For wire junction
- Nut
- 3.5 Nm
- Quantity: 2
- Wire Junction -TV1-
- Removing and Installing. Refer to Wire Junction -TV1-, REMOVING AND INSTALLING, 0K3 .
- Wire
- Tightening specification: 9 Nm
- Allocation. Refer to appropriate service information.
- Wire
- Tightening specification: 9 Nm
- Allocation. Refer to appropriate service information.
- Wire
- Tightening specification: 9 Nm
- Allocation. Refer to appropriate service information.
