Overview - TV System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

The TV system (QU1/QV1) is a component of the "MMI Navigation plus" Infotainment system.

TV Tuner -R78- is connected via the MOST-Bus to the other components of the Infotainment system. Operation is performed via the Multimedia System Control Head -E380-.

Courtesy of AUDI OF AMERICA, LLC

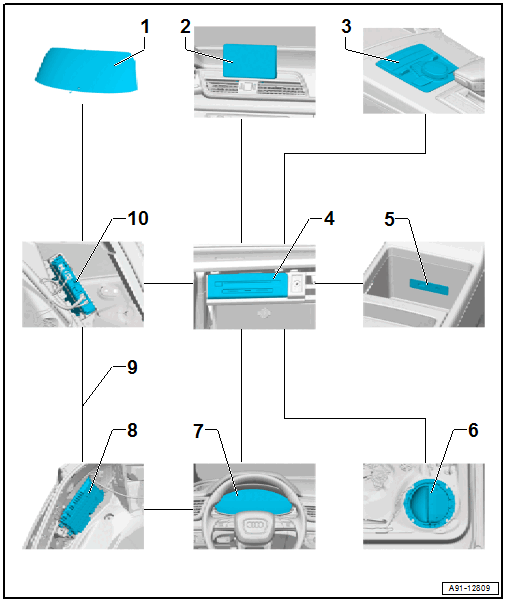

TV Antenna 1 -R55- /TV Antenna 2 -R56- /TV Antenna 3 -R57- with Antenna Amplifiers
Front Information Display Control Head -J685-, display in center of the instrument panel
Multimedia System Control Head -E380- in the Center Console
Information Electronics Control Module 1 -J794- in the Glove Compartment
External Multimedia Device Connection in Rear Center Console Storage Compartment
Sound Systems
Instrument Cluster -KX2-, "Audi virtual cockpit"
Digital Sound System Control Module -J525- in luggage compartment on left rear side
MOST Bus
TV Tuner -R78- in luggage compartment on rear right side

Fault Finding is performed using the "Guided Fault Finding". Refer to Vehicle Diagnostic Tester.

Repairing Antenna Wires. Refer to GENERAL REPAIR INFORMATION .

Notes on MOST bus

The optical data bus "MOST bus" is used in addition to the CAN bus.

A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surface of the connectors must not be contaminated.

If disconnecting the connectors: Attach the :VAS6223/9 .

Fig 1: Fiber-Optic Conductor Repair Set VAS 6223A

Courtesy of AUDI OF AMERICA, LLC

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.

Repairing fiber-optic cables. Refer to GENERAL REPAIR INFORMATION .
