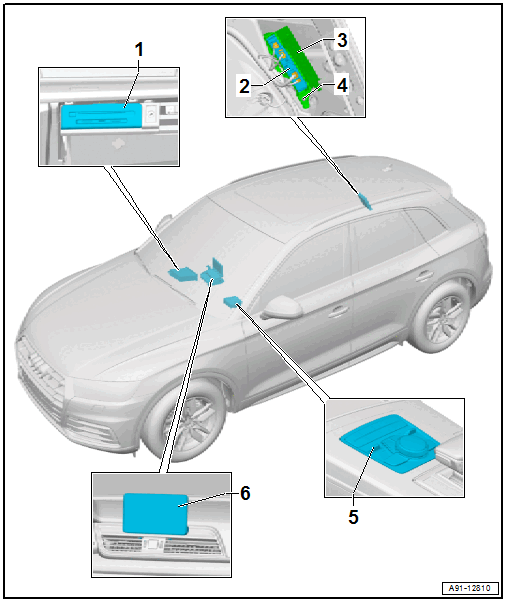

Component Location Overview - TV System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- TV Tuner -R78-
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to TV TUNER, REMOVING AND INSTALLING .
- Bracket
- Bolt
- 3 Nm
- Multimedia System Control Head -E380-
- In the center console
- Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
