Subwoofer -R211-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment floor.

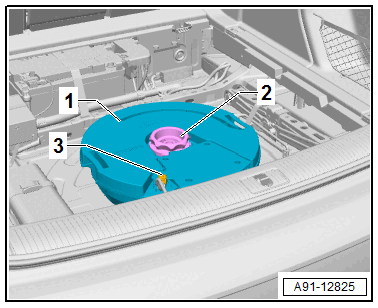

-- Release and disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Remove the Subwoofer -R211- -1- upward out of the spare tire well.
