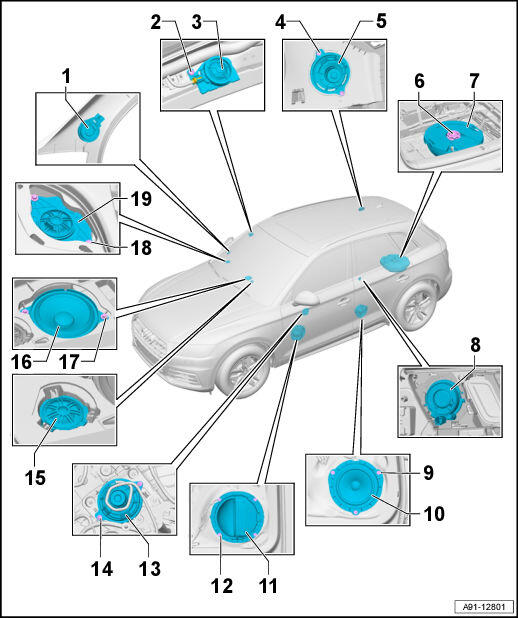

Component Location Overview - Sound System, Speakers
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, 9VS
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, 9VS .
- Bolt
- 2 Nm
- Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, 9VS
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER 2 -R220- / -R221-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Left Effects Speaker -R209- /Right Effects Speaker -R210-, 9VS
- Removing and installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Subwoofer -R211-, 9VD, 9VS
- Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 3
- Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 4
- Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, 9VS
- Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Center Speaker 2 -R219-, 9VS
- Removing and installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING, 9VS .
- Center Speaker -R208-, 9VD, 9VS
- Removing and installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING, 9VD/9VS .
- Bolt
- 1.5 Nm
- Quantity: 2
- Bolt
- 1.5 Nm
- Quantity: 2
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, 8RM, 9VD
- Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, 9VS
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
