Overview - Mobile Online Services, IW3/IW5, From My 2019 With Connect Plus (IV1 Through IV8)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
The mobile online services are based on the eCall and bCall and the Control Module for Emergency Call Module and Communication Unit -J949-.
The Control Module for Emergency Call Module and Communication Unit -J949- is safeguarded against a crash by being installed under the left front seat. The Control Module for Emergency Call Module and Communication Unit -J949- contains an emergency call module and a compass module. A separate SIM card is installed for the emergency call function.

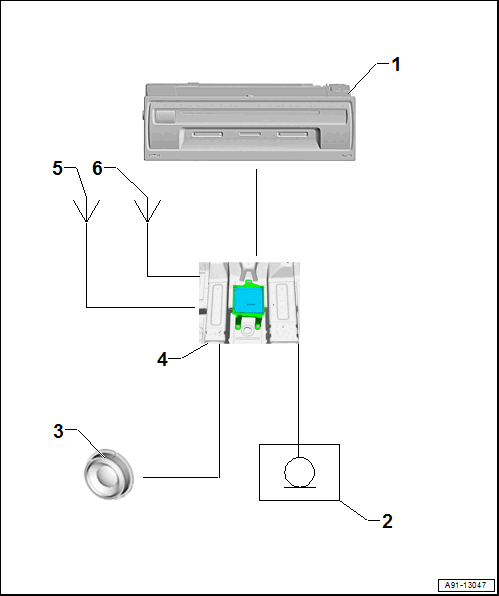

- Information Electronics Control Module 1 -J794- In the Glove Compartment
- Left Front Microphone -R140-, Microphone Unit in Front Roof Module -R164- in the Front Roof Module -WX3-
- Emergency Call Module Speaker -R335- In the Driver Side Instrument Panel Cover
- Control Module for Emergency Call Module and Communication Unit -J949- Under the Left Front Seat
- GPS Antenna -R50- in the Roof Antenna -R216-
- Emergency Call Module Antenna -R263- /Emergency Call Module Antenna 2 -R322-
- Emergency Call Module Antenna -R263- On the Left Seat Belt Guide
- Emergency Call Module Antenna 2 -R322- In the Roof Antenna -R216-
