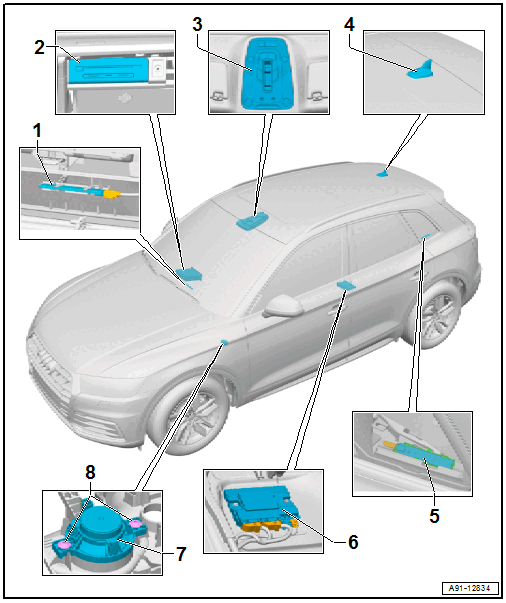

Component Location Overview - Mobile Online Services, RUSSIA Only, IW1
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- not installed
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- With Emergency Call Button -E276- /Left Front Microphone -R140-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- GPS Antenna -R50- /Emergency Call Module Antenna -R263-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- not installed
- Data Bus on Board Diagnostic Interface -J533-
- Underneath the rear bench seat
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to the appropriate service information
- Data Bus on Board Diagnostic Interface -J533-, Removing and Installing. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, REMOVING AND INSTALLING
- Emergency Call Module Speaker -R335-
- In the lower cover on the driver side
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
