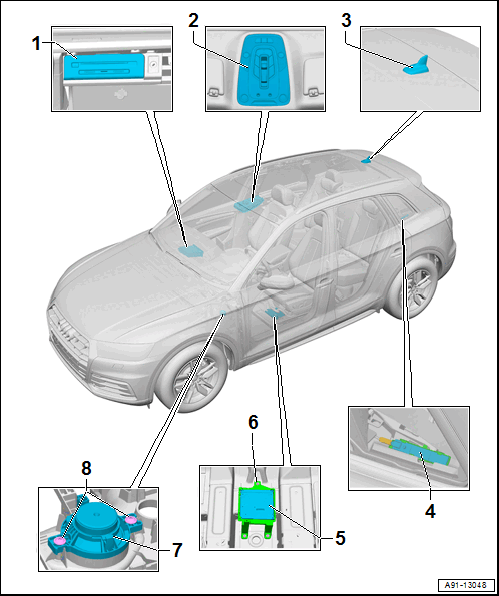

Component Location Overview - Mobile Online Services, IW3/IW5, From My 2019 With Connect Plus (IV1 Through IV8)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- With Left Front Microphone -R140-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- GPS Antenna -R50-
- Emergency Call Module Antenna 2 -R322-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- On the left rear seat belt guide
- Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Under the left front seat
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telematics Emergency Battery -A16-, Checking. Refer to the appropriate service information
- Bracket
- 3.5 Nm
- Nut: quantity 3
- Emergency Call Module Speaker -R335-
- In the lower cover on the driver side
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
