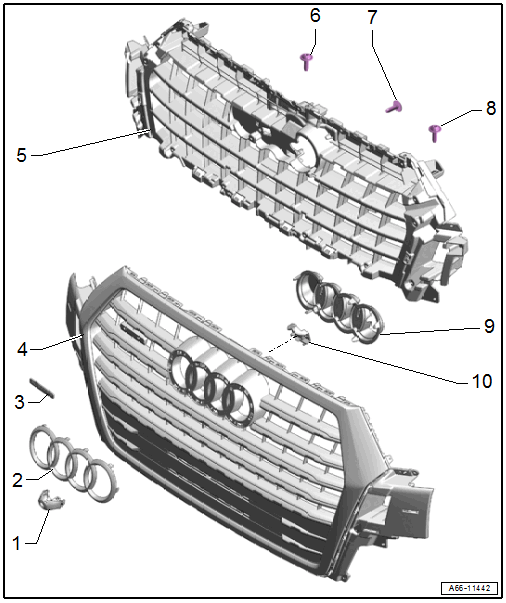

Overview - Radiator Grille
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- For the front camera
- Emblem
- Overview. Refer to OVERVIEW - NAME BADGES AND EMBLEMS .
- quattro Name Badge
- Overview. Refer to OVERVIEW - NAME BADGES AND EMBLEMS .
- Radiator Grille
- Removing and Installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
- Reinforcement Brace
- For the radiator grille
- Removing and Installing. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Bolt
- 1.5 Nm
- Quantity: 18
- Bolt
- 3 Nm
- Cover
- for the emblem
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to RADIATOR GRILLE NAME BADGES AND EMBLEMS, REMOVING AND INSTALLING .
- Mount
- For the front camera
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
