High Pressure Sensor -G65-, Checking: Procedure

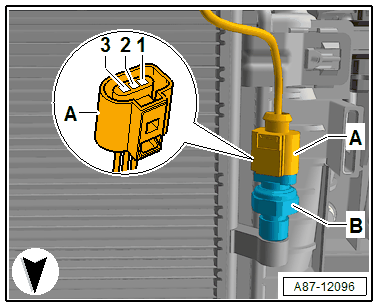

Check the signal from the High Pressure Sensor -G65- -B-, using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
The signal from the High Pressure Sensor -G65- is checked as described in the Guided Fault Finding of the A/C system using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
The signal from the High Pressure Sensor -G65- is transferred via a local data bus to the Front A/C Display Control Head -E87-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and refer to the appropriate Wiring Diagram(s).
If an error signal is detected from the High Pressure Sensor -G65-, the error is entered in the Front A/C Display Control Head -E87- DTC memory. When reading out the DTC memory of the Front A/C Display Control Head -E87-, check the DTC memory of the Front A/C Display Control Head -E87- using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
The measured values of the High Pressure Sensor -G65- is displayed in the "read measured values" function of the Guided Fault Finding of the Front A/C Display Control Head -E87-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
