Refrigerant Lines, Disconnecting And Connecting From Condenser: Installing

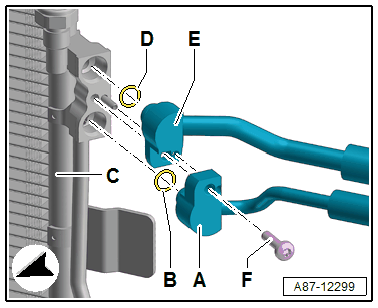

Version 1:

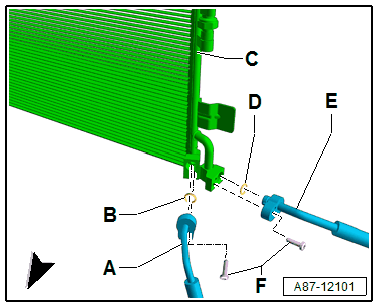

Version 2:
The installation takes place in reverse order and is identical for both versions and at the same time Note The Following:
-- Clean the refrigerant line connections on the condenser -C- and on the refrigerant lines -A and E- and check for damage.
-- Replace the O-rings seals -B and D-. Refer to the Parts Information for the version.
-- Check the alignment pin (installed in the condenser connection or the refrigerant line, not present in all connections) for damage and correct seating.
-- Coat the O-ring seals -B and D- lightly with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .
-- Check the routing of the refrigerant lines after attachment. They must be inserted in the provided brackets in a tension-free manner and must not come in contact with other components.
-- Evacuate and fill the refrigerant circuit. Refer to REFRIGERANT CIRCUIT, EVACUATING WITH A/C SERVICE STATION [R134a] /REFRIGERANT CIRCUIT, CHARGING WITH A/C SERVICE STATION [R134a] or REFRIGERANT CIRCUIT, EVACUATING [R1234yf] / REFRIGERANT CIRCUIT, CHARGING [R1234yf] .
-- Install the remaining removed components.
-- Retrieve the Front A/C Display Control Head -E87- DTC memory and delete the displayed error if necessary. Use the Vehicle Diagnostic Tester.
-- Operate the A/C system after charging the refrigerant circuit. Refer to A/C SYSTEM, STARTING AFTER CHARGING REFRIGERANT CIRCUIT .
