Condenser, Removing And Installing, RS Models: Removing

-- Switch off the ignition.

-- Remove the bumper cover bracket together with the impact member. Refer to OVERVIEW - LOCK CARRIER .

-- Disconnect the refrigerant lines from the condenser. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING FROM CONDENSER .

-- Release the catches -arrow- and remove the air duct -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

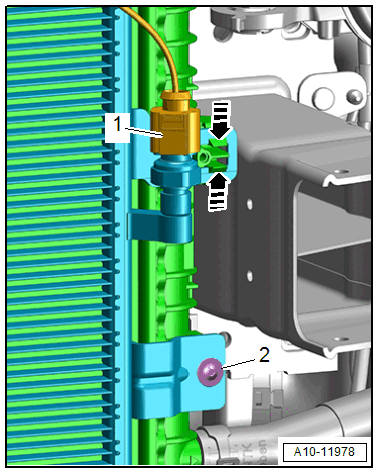

-- Disconnect the connector -1- for the High Pressure Sensor -G65-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Release the left and right catches in direction of -arrows-, disengage and remove the condenser on the radiator.
